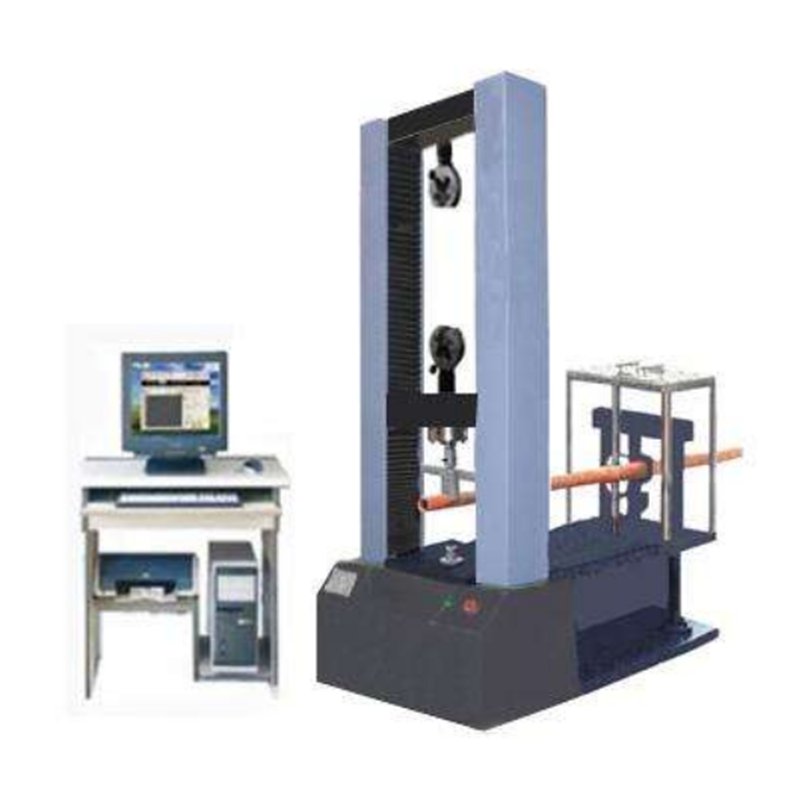

钢管扣件试验机技术指导

钢管扣件试验机设备用途：

该机主要用于钢管扣件性能检测，可完成抗扭转、抗滑移、抗拉伸、抗破坏、抗压等力学性能测试和分析研究。可根据GB、ISO、DIN、ASTM、JIS等国际标准进行试验和提供数据。

Steel pipe fastener testing machine equipment use:
The machine is mainly used for the performance test of steel pipe fasteners, and can complete the mechanical properties test and analysis of anti-torsion, anti-slip, anti-stretch, anti-destruction and anti-pressure. Test and provide data according to GB, ISO, DIN, ASTM, JIS and other international standards.

钢管扣件试验机性能特点：

采用伺服电机驱动,电机通过传动机构带动悬臂上下移动,实现试验加载过程。本机采用先进的全数字闭 环控制系统进行控制及测量，采用液晶/计算机进行试验过程及试验曲线的动态显示，并进行数据处理，试验结束后可进行数据再分析编辑，产品性能达到国际先进水平。

Steel pipe fastener testing machine performance characteristics:
Driven by servo motor, the motor drives the cantilever up and down through the transmission mechanism to realize the test loading process. This machine adopts advanced all-digital closed-loop control system for control and measurement. It adopts LCD/computer to carry out dynamic display of test process and test curve, and carries out data processing. After the test, data can be reanalyzed and edited, and the product performance reaches the international advanced level. .

钢管扣件试验机技术参数：

★A大负荷：100KN

★试验机精度：1%

★试验机等级：1级

★有效测力范围：0.4％～％FS

★测力精度：示值的±0.5％以内

★负荷传感器：基本配置：主负荷传感器一只

★有效拉伸空间：800-900mm

★有效试验宽度：500

★试验速度范围：0～500mm/min

★位移测量精度：示值的±0.5％以内

★变形测量精度：示值的±0.5％以内

★试台安全装置：电子限位保护

★试台升降装置：快/慢速度自动控制、可点动、可设置

★悬臂返车功能 手动或自动两种选择

★超载保护：超过A大负荷10％，机器自动保护

★夹具配置：拉伸夹具1套  压缩夹具1套

★主机尺寸：610*930*2150 mm

★电机：220V±10%

★主机重量：约700KG

Technical parameters of steel pipe fastener testing machine:
★A heavy load: 100KN
★Testing machine accuracy: 1%
★ testing machine level: level 1
★ Effective force range: 0.4%～%FS
★Measurement accuracy: within ±0.5% of the indicated value
★Load sensor: basic configuration: one main load sensor
★ Effective stretching space: 800-900mm
★ Effective test width: 500
★ Test speed range: 0 ~ 500mm / min
★ Displacement measurement accuracy: within ±0.5% of the indicated value
★ Deformation measurement accuracy: within ±0.5% of the indicated value
★Test stand safety device: electronic limit protection
★ Test bench lifting device: fast / slow speed automatic control, can be jogged, can be set
★ Cantilever return function Manual or automatic two options
★ Overload protection: 10% more than A heavy load, automatic machine protection
★ Fixture configuration: 1 set of stretching fixture 1 set of compression fixture
★ Host size: 610*930*2150 mm
★ Motor: 220V ± 10%
★ Host weight: about 700KG
