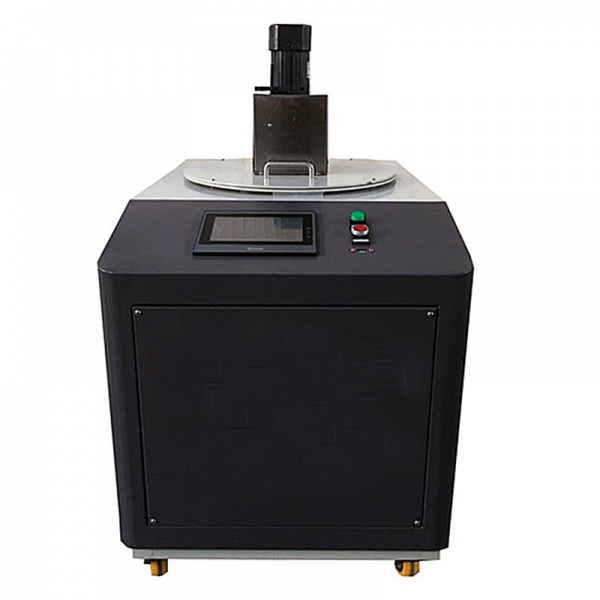

HDR-II混凝土导热系数测定仪

混凝土导热系数测定仪符合《DL/T5150—2001水工混凝土试验规程》，《SL352-2006》所确定的方法及有关参数而设计的，该仪器采用触摸屏控制，具有操作简便、测试性能稳定可靠、自动跟踪温度、实时显示曲线、历史曲线、测试精度高等优点，是用来测定混凝土导热系数仪器。

The concrete thermal conductivity tester is designed in accordance with the "DL/T5150-2001 Hydraulic Concrete Test Regulations" and the method and related parameters determined by "SL352-2006". The instrument adopts touch screen control, which has simple operation and stable and reliable test performance. Automatic tracking temperature, real-time display curve, historical curve, high test accuracy, etc., is used to determine the concrete thermal conductivity instrument.

混凝土导热系数测定仪主要技术参数：

★电源电压：220V 50Hz

★温度控制精度：≤±0.1℃

★环境条件：温度0~40℃相对

★试验桶内胆尺寸：Φ300×420mm

★整体尺寸：890×650×900mm

★触摸屏自动控制。

★试件尺寸：Φ200×400mm

★仪器重量：140Kg

Main technical parameters of concrete thermal conductivity tester

★Power supply voltage: 220V 50Hz

★Temperature control accuracy: ≤ ± 0.1℃

★Environmental conditions: temperature 0~40℃ relative

★Test barrel liner size: Φ300×420mm

★Overall size: 890 × 650 × 900mm

★Touch screen automatic control.

★Specimen size: Φ200×400mm

★Instrument weight: 140Kg
