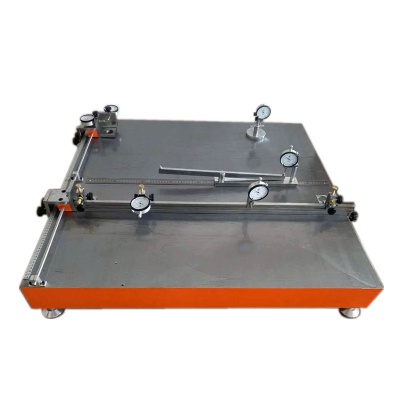

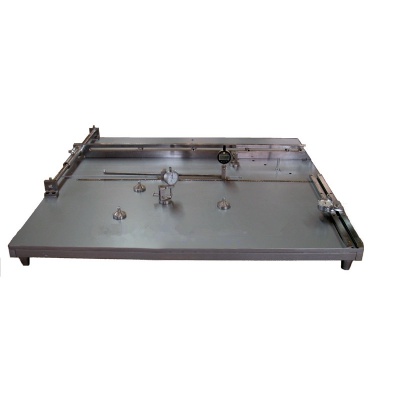

ZCY-II陶瓷砖综合测定仪

一、概述：

陶瓷砖综合测定仪是用于测定各种墙面砖、地面砖尺寸及形状特性之仪器，其所测参数包括面砖的边直度、直角度、平整度等几项指标。测定时，只需一次放置被测试件，便能迅速、准确地测出以上几项指标数据。

本产品符合：GB/T3810.2-2006/ISO 10545-2-1995《陶瓷砖－尺寸和表面质量的检验》的要求。它是陶瓷砖生产厂家和质量检测部门理想的检测仪器。

I. Overview:

The ceramic tile comprehensive tester is an instrument used to measure the size and shape characteristics of various wall tiles and floor tiles. The measured parameters include the edge straightness, right angle and flatness of the tile. When measuring, only need to place the test piece once, and the above several index data can be measured quickly and accurately.

This product meets the requirements of GB/T3810.2-2006/ISO 10545-2-1995 "Ceramic Tiles-Inspection of Dimensions and Surface Quality". It is an ideal testing instrument for ceramic tile manufacturers and quality testing departments.

二、主要技术参数（单位:mm）

1、测量精度:±0.1

2、测量范围：40～600×600；40～800×800；40～1000×1000mm

3、标准板客户选购（选购件）

4、根据用户要求可选用数显表。

2. Main technical parameters (unit: mm)

1. Measurement accuracy: ±0.1

2. Measuring range: 40～600×600; 40～800×800; 40～1000×1000mm

3. Standard board customer purchase (optional)

4. Digital display meter can be selected according to user requirements.

三、原理及结构：

本仪器由支承平板、可移动的左支座和右支座组成一个直角坐标系。在平板上有三个等高支承销与陶瓷面砖类似外形和具有理想尺寸的标准板进行探测，并将仪表值调整至适当位置，并记下该示值。然后，以被测陶瓷面砖取代标准板，在不移动测量点的情况下，分别测出六项指标参数。左、右支座及中心测量支座可在平板上作平行移动，组成不同位置的空间座标，以适应不同规格尺寸陶瓷面砖的测定。

3. Principle and structure:

This instrument is composed of a support plate, a movable left support and a right support to form a rectangular coordinate system. There are three equal height support pins on the flat plate, which are similar in appearance to the ceramic tile and standard plate with ideal size to detect, adjust the meter value to the appropriate position, and record the indicated value. Then, replace the standard board with the measured ceramic tile, and measure six index parameters without moving the measuring point. The left and right support and the center measurement support can be moved in parallel on the plate to form the spatial coordinates of different positions to suit the determination of ceramic tiles of different specifications and sizes
