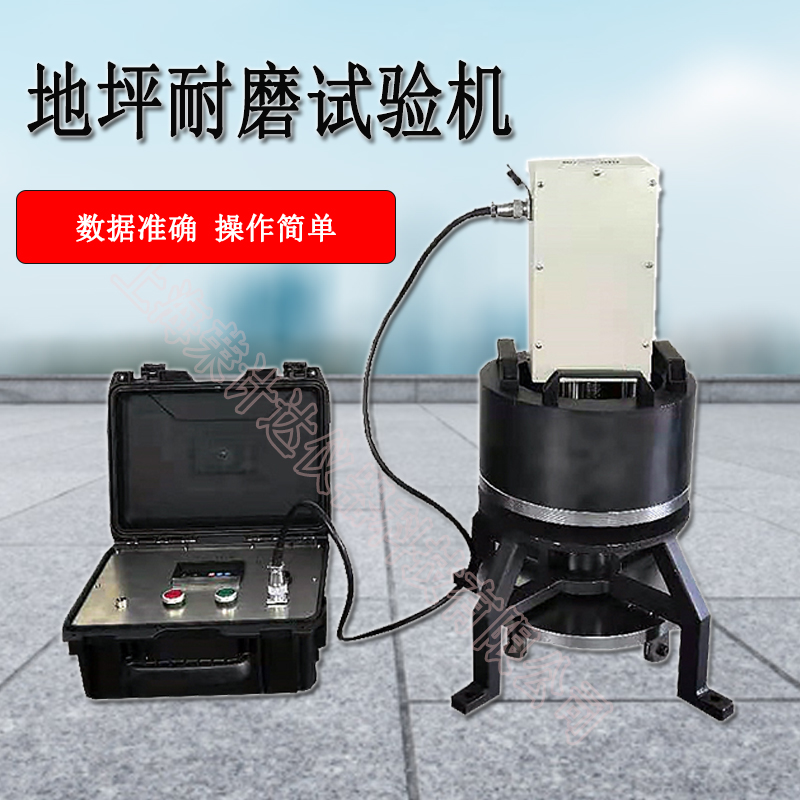

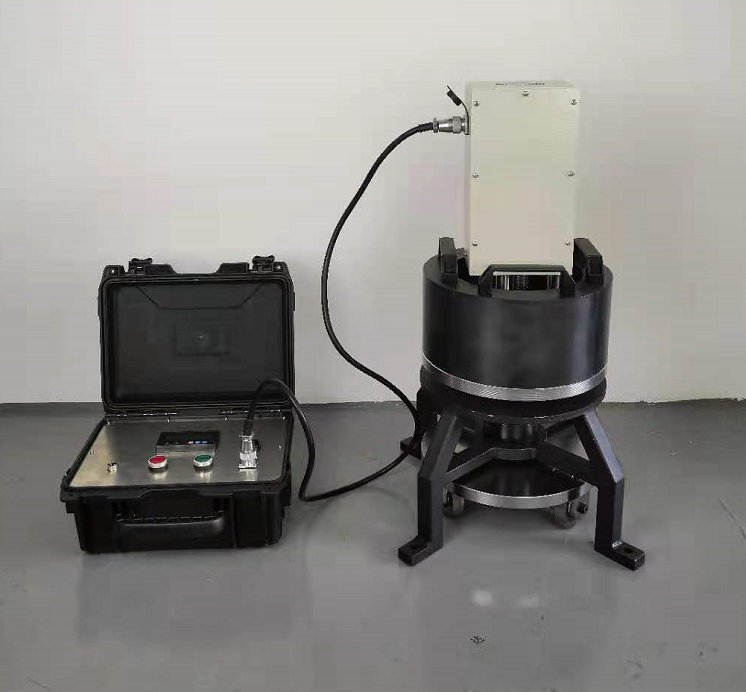

地坪耐磨试验机

一、产品简介：

地坪耐磨试验机适用于水泥基自流平地面面层现场耐磨试验，也可以用于砂浆及找平层耐磨性的测定，地坪耐磨试验机采用伺服电机驱动，3钢制磨轮摩擦，轮围绕磨头圆盘沿环形轨迹滚动，模拟了地坪使用过程中严重的一种磨损情况，即钢轮在拐弯处对地面的磨损，更为直观的体现地坪材料在现场使用中的耐磨性能。

1. Product introduction: The floor abrasion tester is suitable for the on-site abrasion test of cement-based self-leveling ground surface, and can also be used for the determination of the abrasion resistance of mortar and screed. The floor abrasion tester is driven by a servo motor with 3 steel grinding wheels. , The wheel rolls around the grinding head disc along a circular trajectory, which simulates a serious wear situation during the use of the floor, that is, the wear of the steel wheel on the ground at the corner, which more intuitively reflects the level of the floor material in the field. Wear resistance.

二、技术参数：

1、磨轮数量：3个均布

2、转速：0-200 rpm

3、磨轮自转直径：76mm

4、磨轮宽度：20mm

5、磨轮组绕轴旋转直径：225mm

6、磨轮表面硬度：735HV

7、配重：65±0.5kg

8、计数范围：0-9999转

2. Technical parameters: 1. Number of grinding wheels: 3 uniformly distributed 2. Speed: 0-200 rpm 3. Rotation diameter of grinding wheel: 76mm 4. Grinding wheel width: 20mm 5. Rotation diameter of grinding wheel group around axis: 225mm 6. Surface hardness of grinding wheel: 735HV 7. Counterweight: 65±0.5kg 8. Counting range: 0-9999 revolutions

三、特点：

伺服电机驱动：转速可调（用于科研）。主机体积小，重量轻，不丢转。

驱动器内置：防止运输时磕碰损坏。

配重与主机可分离，便于运输。

配重与主机设可靠顺滑导向和定位，保证碾轮与地面间压力准确。

控制器与主机可分离，便于运输，一航插连接。

3. Features: Servo motor drive: adjustable speed (for scientific research). The host is small in size, light in weight, and does not lose power. Built-in drive: to prevent damage from bumps during transportation. The counterweight and the host can be separated for easy transportation. The counterweight and the main engine are equipped with reliable and smooth guidance and positioning to ensure accurate pressure between the roller and the ground. The controller and the host can be separated, which is convenient for transportation.
