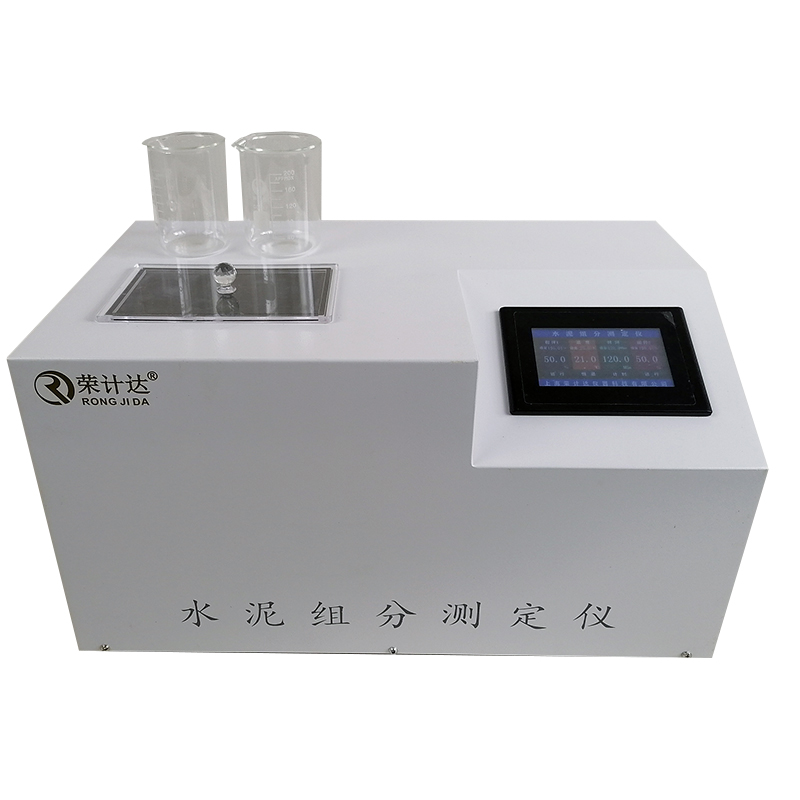

触摸屏水泥组分检测仪

一、产品简介：水泥组分测定仪适用于GB/T12960-1996《水泥组分的定量测定》标准可定量测定水泥中火山灰质混合材料、粉煤灰和矿渣的组分的含量。适用于硅酸盐水泥、矿渣硅酸盐水泥、普通硅酸盐水泥等。

The cement component analyzer is suitable for the GB/T12960-1996 "Quantitative Determination of Cement Components" standard, which can quantitatively determine the content of pozzolanic mixed materials, fly ash and slag in cement. Suitable for Portland cement, slag Portland cement, ordinary Portland cement, etc.

二、技术参数：

★温度控制范围：0-60℃ 可调

★恒温精度：10-20±0.5℃

★定时范围：0-100min

★控温系统：电子制冷

★到达设定温度时报警提示

★电源：220V 50HZ 300W

Technical parameters of cement component analyzer:

★Temperature control range: 0-60℃ adjustable

★Accuracy of constant temperature: 10-20±0.5℃

★Timing range: 0-100min

★Temperature control system: electronic refrigeration

★Alarm when reaching the set temperature

★Power supply: 220V 50HZ 300W

三、使用方法：

测定火山灰质混合材料和粉煤灰组分的含量，同一实验室的允许误差为0.8%，不同实验室的允许误差为1.0%，测定矿渣组分的含量，同一实验室的允许误差为1.0%，不同实验室的允许误差为1.2%。

接通电源后，本机即进入到待机状态，在待机状态下，操作人员可以设定恒温温度，定时时间等试验用参数，参数设定完毕即可进行试验操作。

How to use cement component analyzer:

To determine the content of pozzolanic mixed materials and fly ash components, the allowable error of the same laboratory is 0.8%, and the allowable error of different laboratories is 1.0%. For the determination of the content of slag components, the allowable error of the same laboratory is 1.0% , The allowable error of different laboratories is 1.2%.

After the power is turned on, the machine enters the standby state. In the standby state, the operator can set test parameters such as constant temperature, timing time, etc., and the test operation can be performed after the parameters are set.

四、参数的设定：

首先按[ ]进入设定操作界面，相应被选择的修改位闪烁，此时按[ ]或[ ]可对相应位进行加一或减一操作 ，设定完成后再按[ ] 键即可按顺序选择所有位并进行修改，修改完毕后再按[ ]键一次，系统自动完成

新设定参数的记忆。按[ ]键3秒钟内无任何键按下，系统自动恢复为待机状态。

Setting of cement composition analyzer parameters:

First press [] to enter the setting operation interface, the corresponding selected modification digit flashes, at this time, press [] or [] to add or subtract one to the corresponding digit. After the setting is completed, press the [] key to press Select all digits in order and modify them, press the [] key once after modification, the system will complete automatically

Memory of newly set parameters. Press the [] key within 3 seconds without any key press, the system will automatically return to the standby state.

五、试验操作：

修改完全部系统参数后，系统重新回到待机状态，此时将600～800ml水加入到恒温槽中，在待机状态按

[恒温]键，然后调整搅拌1旋钮，观察恒温水槽以使恒温水槽中的水流动为宜。系统将按照设定的温度值

自动选择加温或制冷，使恒温槽内的温度趋于设定值，并在A次达到恒温温度点时报警，提醒操作员可进行下一步操作。

到达恒温点后，操作员可将装有试样的烧杯中放入一粒搅拌子，并将烧杯放入恒温槽内支架中，并用手调旋钮固定，然后按下[搅拌]键，调节搅拌2、搅拌3旋钮。使搅拌子在烧杯中的旋转速度达到要求。此时即可按[定时]键，系统进入定时试验阶段，到达定时时间后，仪器自动停止恒温操作及搅拌。至此，本次测定结束，可取出试验进行后续的试验过程了。

Test operation of cement component analyzer:

After modifying all the system parameters, the system returns to the standby state. At this time, add 600-800ml of water to the constant temperature bath, and press

[Constant temperature] key, then adjust the stirring knob 1 and observe the constant temperature water tank to make the water flow in the constant temperature water tank. The system will follow the set temperature value

Automatically select heating or cooling, so that the temperature in the thermostatic bath tends to the set value, and alarm when the temperature reaches the constant temperature point A times, reminding the operator to proceed to the next step.

After reaching the constant temperature point, the operator can put a stir bar in the beaker containing the sample, put the beaker into the bracket in the constant temperature bath, and fix it with the knob by hand, and then press the [stir] key to adjust the stirring 2. Stir 3 knobs. Make the rotation speed of the stir bar in the beaker meet the requirements. At this time, you can press the [timing] key, and the system enters the timing test phase. When the timing time is reached, the instrument automatically stops constant temperature operation and stirring. At this point, this measurement is over, and the test can be taken out for the subsequent test process.

水泥组分测定仪试验：

在进行水泥组分的测定前，请仔细阅读随机附赠的国标准GB/T12960-1996《水泥组分的定量测定》。并准备好所需的各种试剂及设备。

将仪器放在平稳、平整的工作台上，连接仪器后面板上的冷却水系统，并将其中一根硅胶管连接到冷却水泵上，取一个常用的塑料养护水槽，并在其中注入水，将冷却水泵及冷却水另一根硅胶管放入水槽中（注意回水管A好固定）。将水泵电源插到仪器右侧的插座上，将仪器电源线插好并接通电源。此时打开仪器面板上的电源开关，面板上的数码管亮，并显示恒温试验水槽内温度。

将600～800ml水注入不锈钢恒温水槽内，根据试验要求调整好CZF-6水泥组分测定仪的恒温温度及定时时间。将50ml水注入150ml烧杯中，将烧杯置于水泥组分测定装置上，按[恒温]及[搅拌]键，调整搅拌1、搅拌2、搅拌3

调整钮，调整3个搅拌电机转速至合适值上。

待仪器初次达到恒温点报警后，即可进行试验了，根据试验要求，可按[定时]键，此时仪器进入定时操

作状态，仪器上显示的时间为工作的时间，到达设定的时间后仪器报警，本次操作结束。

Cement composition tester test:

Before proceeding with the determination of cement components, please carefully read the accompanying national standard GB/T12960-1996 "Quantitative Determination of Cement Components". And prepare all the required reagents and equipment.

Place the instrument on a stable and level workbench, connect the cooling water system on the back panel of the instrument, and connect one of the silicone tubes to the cooling water pump, take a commonly used plastic curing sink, and pour water into it. Put the cooling water pump and another silicone tube of cooling water into the water tank (note that the return pipe A is fixed). Plug the power supply of the water pump into the socket on the right side of the instrument, plug the power cord of the instrument and turn on the power. At this time, turn on the power switch on the panel of the instrument, and the digital tube on the panel lights up and displays the temperature in the constant temperature test water tank.

Pour 600-800ml of water into the stainless steel constant temperature water tank, and adjust the constant temperature and timing time of the CZF-6 cement component analyzer according to the test requirements. Pour 50ml of water into a 150ml beaker, place the beaker on the cement component measuring device, press the [constant temperature] and [stir] keys to adjust stirring 1, stirring 2, and stirring 3.

Adjust the knob to adjust the speed of the 3 stirring motors to a suitable value.

After the instrument reaches the constant temperature alarm for the first time, the test can be carried out. According to the test requirements, you can press the [timing] key, and the instrument will enter the timing operation.

Operating status, the time displayed on the instrument is the working time, the instrument alarms when the set time is reached, and the operation ends.
