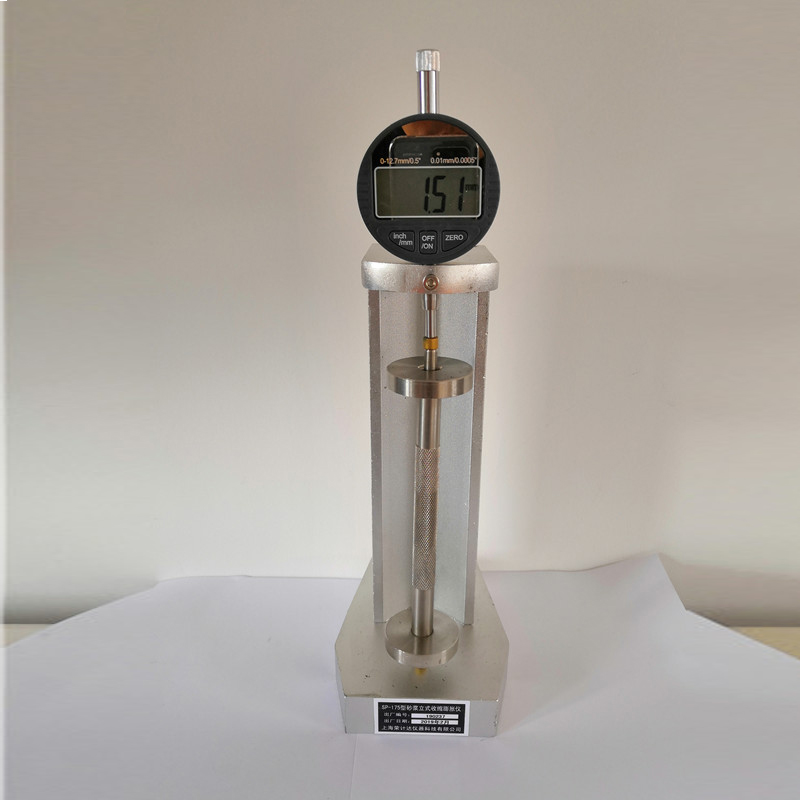

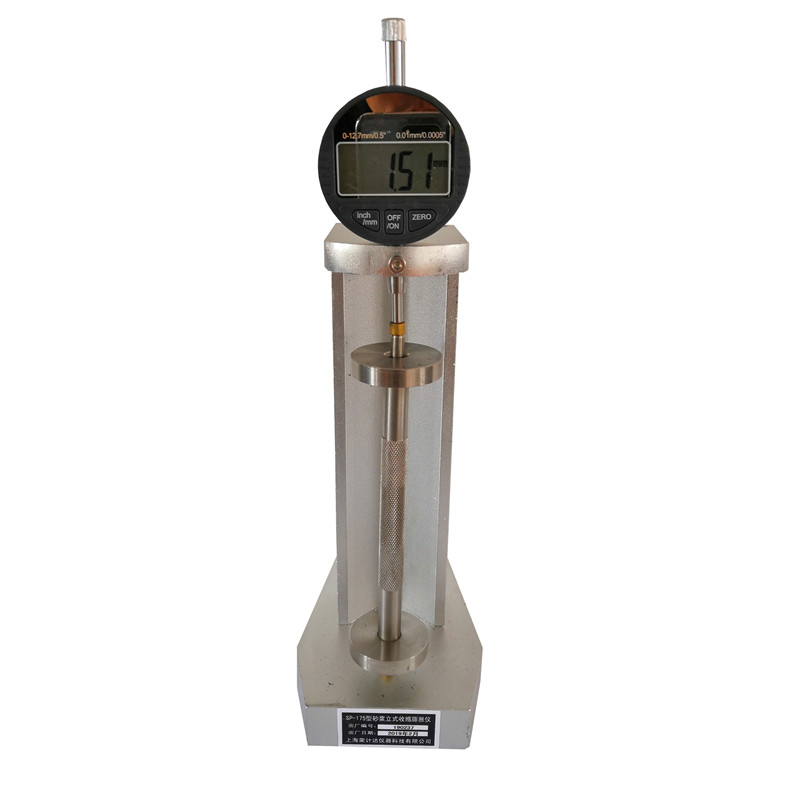

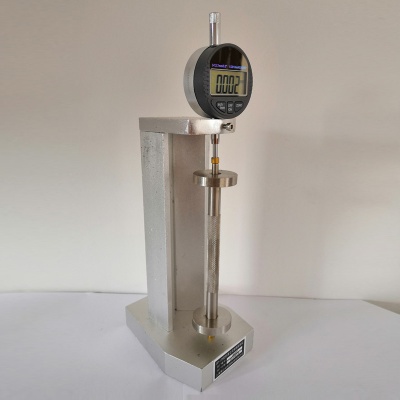

立式砂浆收缩膨胀仪

立式砂浆收缩膨胀仪是砂浆检测仪器，使用前务必仔细阅读说明书。并由专业实验人员操作，以避免操作不当引起的伤害。如需了解更多资料请与我公司客服人员联系。我公司依据行业标准JGJ70-90《建筑砂浆基本性能试验方法》而设计，是实验室检测砂浆物流性能的仪器。采用百分表显示，精度0.01mm。操作简单方便。用来测定砂浆的收缩和膨胀变形量，以确定其收缩系数和膨胀参数。

Vertical mortar shrinkage expander is a professional mortar testing instrument, please read the instructions carefully before use. It is operated by professional experimenters to avoid injury caused by improper operation. For more information, please contact our customer service staff. Our company is designed according to the industry standard JGJ70-90 "Basic Performance Test Method for Building Mortar", which is a special instrument for laboratory testing the performance of mortar logistics. Using a dial indicator, the accuracy is 0.01mm. The operation is simple and convenient. It is used to determine the shrinkage and expansion deformation of the mortar to determine its shrinkage coefficient and expansion parameters.

立式砂浆收缩膨胀仪技术参数:

★标准棒长度 175mm

★标准棒膨胀系数 15×10-6/℃

★位移计精度 0.01mm

★位移计量程 ±5mm

★百分表A小刻度值：0.01mm

★百分表A大量程：10mm

★测量范围：170～180mm

★测头球面孔半径：R=3mm

★标准杆基长：175mm

★外形尺寸 220×220×510mm

Vertical mortar shrinkage expander technical parameters:

★Standard bar length 175mm

★Standard rod expansion coefficient 15×10-6/°C

★ Displacement meter accuracy 0.01mm

★ Displacement measuring range ±5mm

★ Dial indicator A small scale value: 0.01mm

★ Dial indicator A large range: 10mm

★Measurement range: 170～180mm

★ Probe ball face radius: R=3mm

★Standard base length: 175mm

★Dimensions 220×220×510mm

立式砂浆收缩膨胀仪使用方法:

★先将标准棒置于工作台上，拧动调整螺丝使之近似垂直。

★将测量框架置于标准棒的顶头，调整螺杆和螺母，使百分表对准零位（或记下百分表之刻度）。

★将制作养护好的试件两端擦拭净，然后放置在工作台上，然后把测量框架套在试件上，并左右移动表框，使试件与测量框架的测量头准确地接触，此时即可开始读数，并记录下表盘上的刻度值。

★如果实验不是连续进行或实验历时较久后，则在测试前须先在标准棒上校准测量框架。

Vertical mortar shrinking expander use method:

★ First place the standard rod on the workbench and turn the adjustment screw to make it approximately vertical.

★ Place the measuring frame on the top of the standard rod, adjust the screw and nut, and align the dial indicator to the zero position (or note the scale of the dial indicator).

★ Wipe the ends of the cured test piece and place it on the workbench. Then place the measuring frame on the test piece and move the bezel left and right to make the test piece and the measuring head of the measuring frame touch accurately. The reading can be started and the scale value on the lower panel is recorded.

★ If the experiment is not continuous or the test lasts longer, the measurement frame must be calibrated on the standard bar before testing.

立式砂浆收缩膨胀仪使用注意事项:

★使用时，忌用手直接与标准棒接触，应持外外套部分，以防止标准棒受人体手温的影响。

★仪器用毕后，应将测量框架的测量头和百分表探拭净，并涂以钟表油；测试过程中，应使百分表的测头缓慢而平稳地与试件接触，不允许冲击和碰撞，严禁将百分表测杆顶过A大量程范围，以免影响表的灵敏度和使用寿命。

Precautions for the use of vertical mortar shrinkage expander:

★ When using, avoid contact with the standard rod directly by hand, and hold the outer jacket part to prevent the standard rod from being affected by the human hand temperature.

★ After the instrument is used, the measuring head and dial indicator of the measuring frame should be cleaned and coated with watch oil. During the test, the probe of the dial indicator should be slowly and smoothly contacted with the test piece. For impact and collision, it is strictly forbidden to push the dial indicator over the A large range, so as not to affect the sensitivity and service life of the watch.
