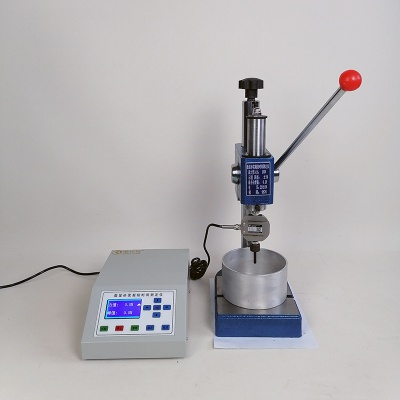

数显砂浆凝结时间测定仪

数显砂浆凝结时间测定仪主要用于测定墙面砂浆和砌墙砂浆以灌入阻力表示的凝结速度和境界时间。适用于侧定墙面砂浆和砌墙砂浆以贯入阻力表示的凝结速度和凝结时间。

Digital display mortar setting time measuring instrument is mainly used to measure the setting speed and boundary time of wall mortar and wall masonry mortar expressed by the infiltration resistance. It is suitable for the setting speed and setting time of side wall mortar and wall mortar expressed by penetration resistance.

数显砂浆凝结时间测定仪技术指标：

★采样时间：每秒二次

★检测力范围：0～150N

★试针截面积：30mm2

★A大行程：50mm

★试模内径及深度：∮145*75

★视值精度：1%N

★视值分辨率：0.5H

★毛重/净重；20kg

★电压功率：220V/50W

Technical indicators of digital mortar setting time tester:

★ Sampling time: twice per second

★ Detection force range: 0 ～ 150N

★ Cross section of test needle: 30mm2

★ A large stroke: 50mm

★ Diameter and depth of test mold: ∮145 * 75

★ Accuracy value: 1% N

★ Apparent resolution: 0.5H

★ Gross / Net weight; 20kg

★ Voltage power: 220V / 50W

数显砂浆凝结时间测定仪使用方法：

★使用时**先将搅拌均匀的砂浆装入试模内，离上口平面约10 毫米抹平，砂浆表面泌水不清除。

★将试模放在圆盘上，此时将压力显示器清零（显示器设定见附录）〔然后操作者用手将压杆垂直向下施压力，在10 秒时间内将试针缓慢而均匀地垂直贯入砂装25mnl ，这时压力显示器上所示为A次测定值，同时将限位螺母调到适当位置，放开压杆，试针在弹簧力作用下复位。

★按每半小时重复一次，当阻力值达到0.3MPa 时改为15分钟测定一次，直到阻力值达到0.7MPa 为止。

Use method of digital mortar setting time measuring instrument:

★ When using ** Put the evenly-mixed mortar into the test mold, smooth it about 10 mm away from the upper mouth surface, and the water on the surface of the mortar will not be removed.

★ Place the test mold on the disk, and then clear the pressure display (see the appendix for the display setting) [Then, the operator presses the pressure bar vertically downwards by hand, and slowly and evenly test the needle within 10 seconds. The ground is vertically penetrated into the sand installation 25mnl. At this time, the measured value is displayed on the pressure display for A times. At the same time, the limit nut is adjusted to the appropriate position, the pressure lever is released, and the test needle is reset by the spring force.

★ Repeat every half hour, when the resistance value reaches 0.3MPa, change to 15 minutes to measure once, until the resistance value reaches 0.7MPa.

数显砂浆凝结时间测定仪主要结构：

由压杆、试针轴、试针座、钻夹头、接触片、试针、试模、压力器、底座、调节螺杆、调节螺母、立柱等组成。

The main structure of digital mortar setting time tester:

It consists of a pressure rod, a test pin shaft, a test pin holder, a drill chuck, a contact piece, a test pin, a test mold, a pressure device, a base, an adjustment screw, an adjustment nut, an upright, and the like.

数显砂浆凝结时间测定仪注意事项：

1、试验结束，须将工作台面板，试针及接触片擦洗干净。工作台面勿受重压（小于1Okg）。

2、将试模内试样取出，擦洗干净并上油防锈，使用前上脱模剂。

3、滑动部分应经常注油润滑，使仪器工作正常。

4、本仪器应安放在室温在20 ℃ 左右安静及无腐蚀无介质的环境中。

Note for digital display mortar setting time tester:

1. At the end of the test, the workbench panel, test pins and contact pads must be cleaned. Do not subject the work surface to heavy pressure (less than 10kg).

2. Take out the sample in the test mold, scrub it clean, apply oil to prevent rust, and apply release agent before use.

3. The sliding part should be lubricated with oil frequently to make the instrument work normally.

4. The instrument should be placed in a quiet, non-corrosive and medium-free environment at room temperature around 20 ℃.
