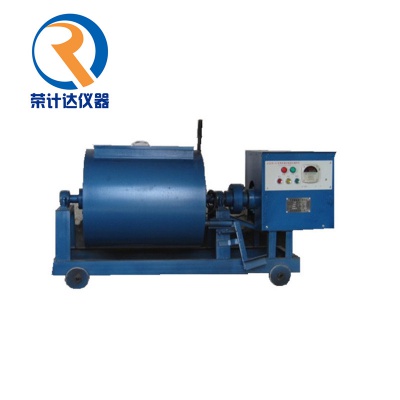

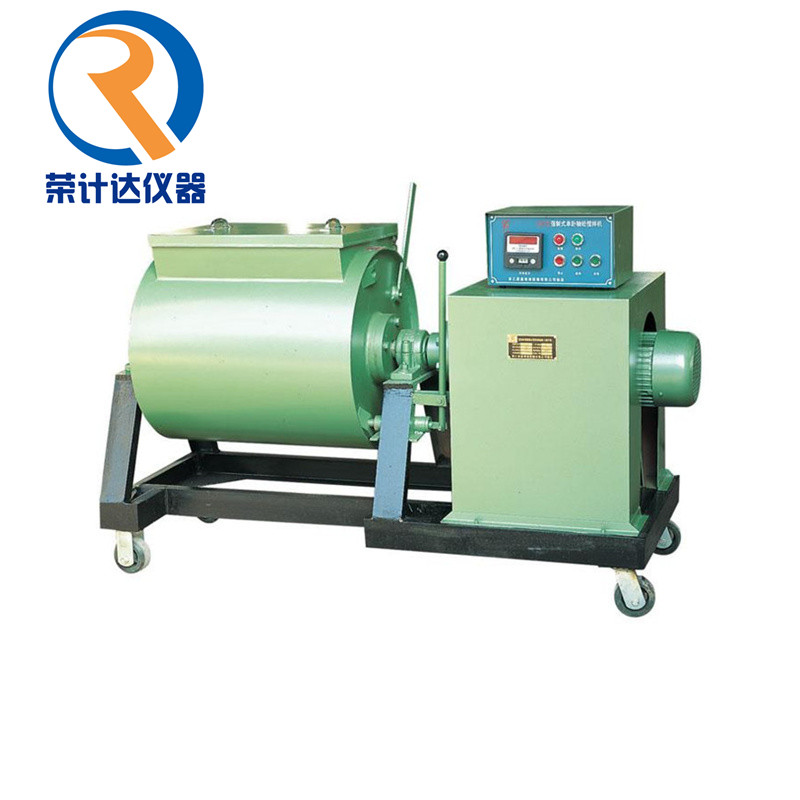

HWJ-15卧式砂浆搅拌机

卧式砂浆搅拌机适用于建筑科研建筑公司及干粉砂浆厂试验室,可搅拌干粉砂浆和普通混凝土,也可用到其它行业试验室对不同物料进行搅拌的设备。

  • 型号: HWJ-15

  • 产品参数
  • 型号: HWJ-15

卧式砂浆搅拌机适用于建筑科研建筑公司及干粉砂浆厂试验室,可搅拌干粉砂浆和普通混凝土,也可用到其它行业试验室对不同物料进行搅拌的设备。

Horizontal mortar mixer is suitable for the construction scientific research and construction company and the laboratory of dry powder mortar factory. It can mix dry powder mortar and ordinary concrete. It can also be used in other industries to test equipment for mixing different materials.


卧式砂浆搅拌机技术参数:

■进料容量:18升;

■出料容量:15升;

■大出料容量:20升;

■搅拌均匀时间:≤45秒;

■搅拌轴转速:45转/分

■电源电压:380V-1.5千瓦;

■外形尺寸:1130×400×900mm;

■毛重:110KG

Technical parameters of horizontal mortar mixer:

■ Feeding capacity: 18 liters;

■ Discharging capacity: 15 liters;

■ Large discharge capacity: 20 liters;

■ Stir time: ≤45 seconds;

■ Rotating speed of stirring shaft: 45 rpm

■ Power supply voltage: 380V-1.5 kW;

■ Dimensions: 1130 × 400 × 900mm;

■ Gross weight: 110KG


卧式砂浆搅拌机结构:

由拌筒、加料和卸料机构、传动机构、机架和支承装置组成。

砂浆搅拌机通过轴与传动机构连接的动力机构带动的滚筒,在滚筒筒体上装围绕滚筒筒体设置的齿圈,传动轴上设置与齿圈啮合的齿轮,来实现搅拌工作。砂浆搅拌机结构简单、合理,采用齿轮、齿圈啮合后,可有效克服雨雾天气时,托轮和搅拌机滚筒之间的打滑现象;采用的传动机构可进一步保证消除托轮和搅拌机滚筒之间的打滑现象

Structure of horizontal mortar mixer

It consists of a mixing drum, a feeding and discharging mechanism, a transmission mechanism, a frame and a supporting device.

The mortar mixer is driven by a drum driven by a power mechanism connected to the transmission mechanism. The drum cylinder is provided with a ring gear arranged around the drum cylinder, and the transmission shaft is provided with a gear meshing with the ring gear to achieve the stirring work. The structure of the mortar mixer is simple and reasonable. After the gears and ring gears are engaged, it can effectively overcome the slippage between the supporting roller and the mixer roller in rainy and foggy weather; the transmission mechanism can further ensure that the slipping between the supporting roller and the mixer roller is eliminated phenomenon


卧式砂浆搅拌机操作规程:

■启动前**先检查旋转部分与料筒是否有刮碰现象,如有刮碰,应及时调整。

■ 减速箱应注入机油后方能使用,卸料蜗轮及滑动轴承处也应注入机油。

■清理料筒内杂料,将筒体限位装置锁紧,然后启动机器,如在启动后发现运转方向不符合要求时,应及时切断电源,将导线的任意两根相线互换位置,再重新启动。

■ 将混凝土拌合物装入料筒内,合上筒盖,根据搅拌时间调整时间继电器的定时(必须在断电情况下调整)。

■按动启动按钮,主轴便带动搅拌铲运转,达到设定时间后自动停车。

■卸料时先停机,然后将料体位限制受柄松开,再旋转手轮,由蜗轮带动料筒旋转到便于出料的位置,停止转动,然后启动机器使主轴运转方可排出物料,直至将料排干净停止主轴运转,旋转手轮使物料筒复位。

■清洗料筒,将水到入料筒内使主轴运转将料筒内残余物料清洗干净或用砂子清洗也可

Operation rules of horizontal mortar mixer

■ Before starting ** Check if there is any scratch between the rotating part and the barrel. If there is any scratch, adjust it in time.

■ The reduction gear box should be filled with engine oil before use, and the discharge worm gear and sliding bearing should also be filled with engine oil.

■ Clean up the miscellaneous materials in the barrel, lock the barrel limit device, and then start the machine. If the running direction is found to be inconsistent with the requirements after the startup, the power should be cut off in time, and any two phase wires of the wire should be interchanged. Restart again.

■ Put the concrete mixture into the barrel, close the cover, and adjust the timing of the time relay according to the mixing time (must be adjusted in the case of power failure).

■ Press the start button, the main shaft will drive the mixing shovel to run, and it will stop automatically when it reaches the set time.

■ When unloading, stop the machine first, then release the material position restriction and handle, and then rotate the hand wheel. The worm wheel will drive the barrel to the position convenient for discharging, stop the rotation, and then start the machine to make the spindle run to discharge the material until Stop the spindle to run cleanly, and turn the handwheel to reset the barrel.

■ Clean the barrel. Put the water into the barrel and run the spindle to clean the residual material in the barrel or use sand to clean it.


HWJ-15卧式砂浆搅拌机
卧式砂浆搅拌机适用于建筑科研建筑公司及干粉砂浆厂试验室,可搅拌干粉砂浆和普通混凝土,也可用到其它行业试验室对不同物料进行搅拌的设备。
