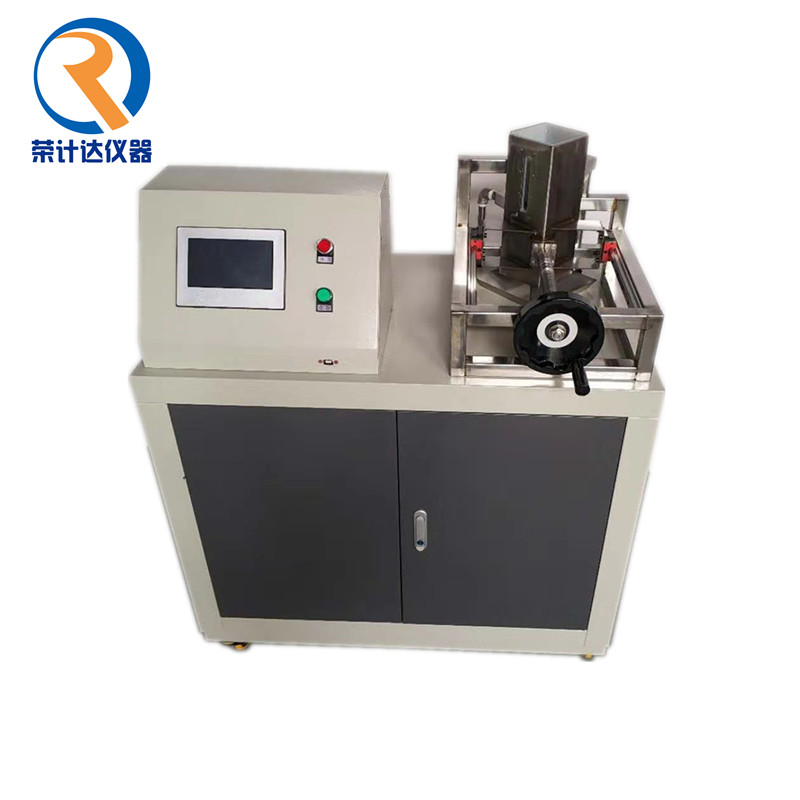

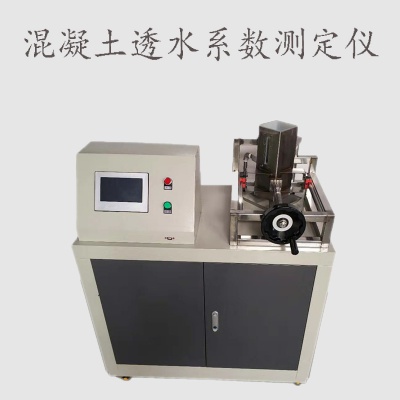

TS-150混凝土透水系数测定仪

一、产品简介：

混凝土透水系数测定仪是**检测透水混凝土而开发，主要针对建设海绵城市建设过程中对透水混凝土的检测要求制造，适用于混凝土试样的透水系数试验测定，也可做透水砖透水系数试验。产品具有快速安装，自动测量，测量准确性能强等特点。

Product introduction:

The concrete water permeability coefficient tester was developed to test the permeability of concrete. It is mainly manufactured for the testing requirements of water-permeable concrete during the construction of a sponge city. It is suitable for the test of the water permeability coefficient of concrete samples. The product has the characteristics of fast installation, automatic measurement and strong measurement accuracy.

二、技术参数：

★触摸屏全自动控制

★透水时间可以任意设定

★系统自动测量

★温度精度：±0.1℃

★时间精度：±1s

★称重范围：0~30 kg

★试件尺寸：100×100×100或150×150×150(mm)

Technical parameters:

★ Touch screen automatic control

★ Water penetration time can be set arbitrarily

★ System automatic measurement

★ Temperature accuracy: ± 0.1 ℃

★ Time accuracy: ± 1s

★ Weighing range: 0 ~ 30 kg

★ Test piece size: 100 × 100 × 100 or 150 × 150 × 150 (mm)

三、试验步骤：

★将准备好的混凝土试样尺寸（长100mm×宽100mm×高100mm或长150mm×宽150mm×高150mm）侧面用保鲜膜包裹严实，每3块为1组进行试验。  ★按要求将设备各管路部件正确连接，并将储水桶内准备好足够试验用的自来水，并将测温线放入储水桶内。

★将包裹好的试块用密封垫正确安装在透水试验台上，并用升降操作手轮将试块升至合适位置，并手动上水测试试块的密封性。

★将设备上水水泵、天平、透水系数分析的电源线正确连接好。

★将透水系数的供电电源插头插入电邮接地线的三相插座，并连接好电源接入位置的接地钉。

★按下红色的“电源开关”键，接通电源，进入透水测定仪操作界面。

Third, the test steps:

★ The prepared concrete sample size (length 100mm × width 100mm × height 100mm or length 150mm × width 150mm × height 150mm) is wrapped tightly with plastic wrap on the side, and every 3 pieces is tested in a group.

★ Connect the pipe parts of the equipment correctly according to the requirements, prepare enough tap water for the test in the water storage bucket, and put the temperature measurement line in the water storage bucket.

★ Install the wrapped test block with a gasket properly on the water-permeable test bench, and use the lifting operation handwheel to raise the test block to an appropriate position, and manually test the tightness of the test block with water.

★ Connect the power line of the water pump, balance and water permeability coefficient of the equipment correctly.

★ Plug the power supply plug of the water permeability into the three-phase socket of the email grounding wire, and connect the grounding pin of the power connection location.

★ Press the red "power switch" key, turn on the power, and enter the operation interface of the water permeability tester.
