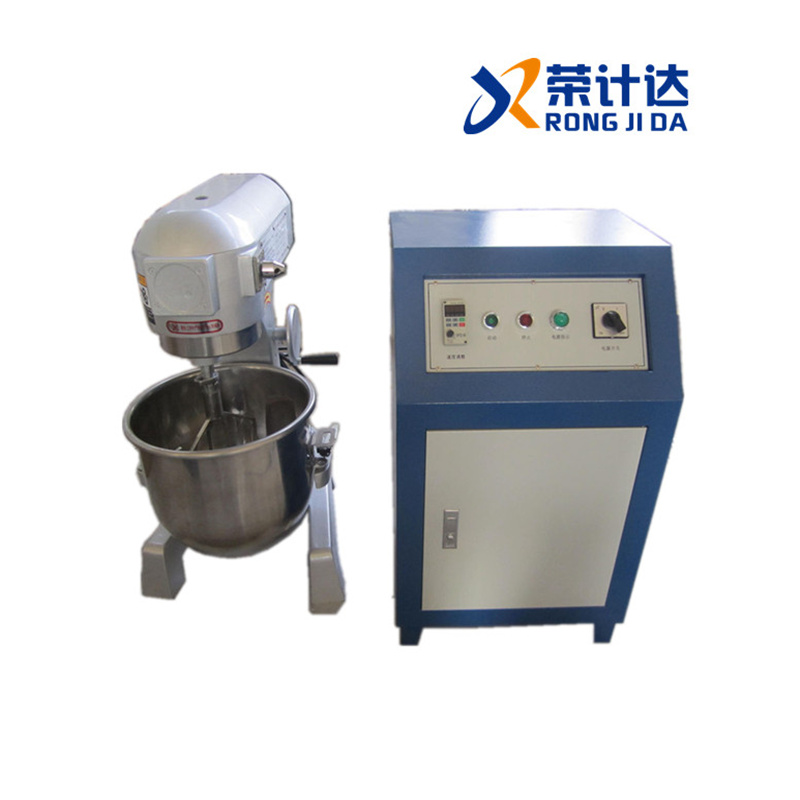

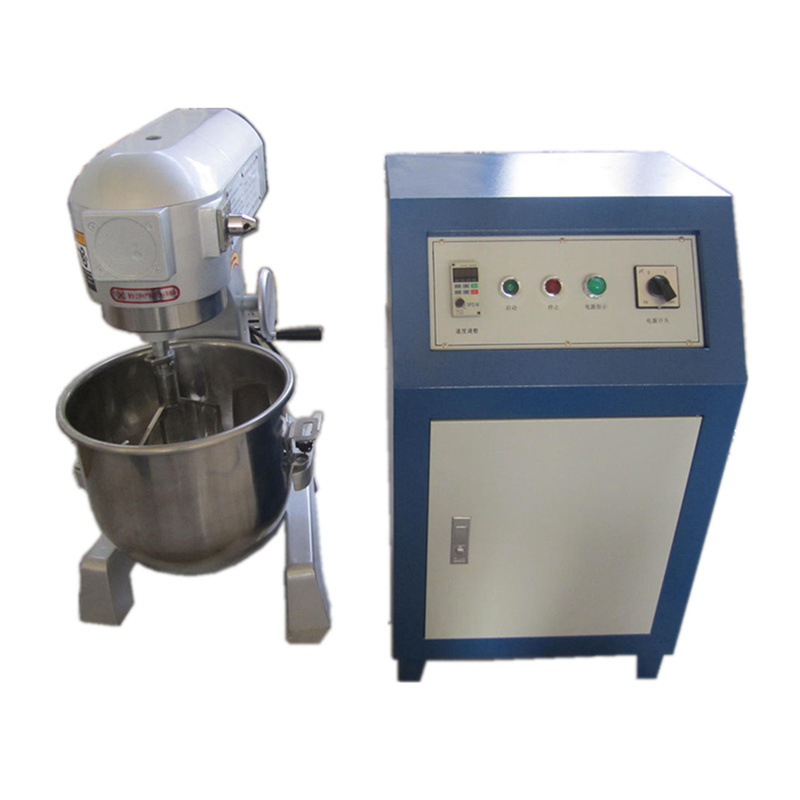

砌墙砖搅拌机

适用于工业与民用建筑砌墙砖抗压强度制备用试验设备。使用前务必仔细阅读说明书。



一,砌墙砖搅拌机概述:

适用于工业与民用建筑砌墙砖抗压强度制备用试验设备。使用前务必仔细阅读说明书。并由专业实验人员操作,以避免操作不当引起的伤害。如需了解更多资料请与我公司客服人员联系根据GB/T 25044-2012《砌墙砖抗压强度试样制备设备通用要求》技术规程设计生产的新型强度试验搅拌设备。是拌制净浆的专用设备,控制系统采用程控变频技术,具备转速连续可调、数字显示、外型美观、操作方便等优点。

I. Overview:
It is suitable for testing equipment for compressive strength preparation of industrial and civil building wall tiles. Be sure to read the instructions carefully before use. It is operated by professional experimenters to avoid injury caused by improper operation. For more information, please contact our customer service staff. According to GB/T 25044-2012 "General requirements for wall-mounted brick compressive strength sample preparation equipment" technical design and production of new strength test mixing equipment. It is a special equipment for mixing pulp. The control system adopts program-controlled frequency conversion technology, which has the advantages of continuously adjustable speed, digital display, beautiful appearance and convenient operation.



二,砌墙砖搅拌机技术参数:

利用搅拌臂与搅拌锅之间的相对运动砌墙砖抗压强度试验用浆搅拌的装置。

额定电压:380V

搅拌锅额定容量:23.6L

搅拌容量;20L

额定频率:50HZ

额定功率:2.5KW

搅拌转速:(分为三个档)I 档 45r/min   II档 90R/min   III档 150r/min

外形尺寸:600X450X900mm

重量:100kg

Second, technical parameters:
★Using the relative motion between the mixing arm and the mixing pot to test the compressive strength of the masonry brick.
★Rated voltage: 380V
★Stirring pot rated capacity: 23.6L
★ mixing capacity; 20L
★Rated frequency: 50HZ
★ rated power: 2.5KW
★ Mixing speed: (divided into three gears) I gear 45r/min II gear 90R/min III gear 150r/min
★Dimensions: 600X450X900mm
★ Weight: 100kg



三,砌墙砖搅拌机操作规程:

使用前把搅拌机放到水平的工作台上面,把搅拌机与操作柜电源连接好,然后按下启动开关再慢慢旋转调速开关,搅拌开始。

Third, the operating procedures:
Put the mixer on the horizontal workbench before use, connect the mixer to the power supply of the operation cabinet, then press the start switch and slowly rotate the speed control switch, and the stirring starts.



四,砌墙砖搅拌机注意事项:

使用前要仔细阅读说明书,严格按操作规程使用。

开机前必须接好接地线装置,工作中A随意拆除,以免发生触电。

机器工作时,手不准伸入搅拌锅内,以免发生意外。

发现机器有故障应立即停机,找专业人员检查。

搅拌完成后将料桶及搅拌叶拆下后清洗,凉干保存。

搅拌锅拆,装时一定要轻拿轻放,以免磕碰变形无法正常使用。

Fourth, note:
★ Read the instructions carefully before use and strictly follow the operating procedures.
★The grounding wire device must be connected before starting the machine. A can be removed at will during operation to avoid electric shock.
★ When the machine is working, the hand is not allowed to reach into the mixing pot to avoid accidents.
★ If the machine is found to be faulty, stop it immediately and look for a professional check.
★ After the mixing is completed, the drum and the mixing blade are removed, cleaned, and stored dry.
★ Mix the pot and disassemble it. It must be handled gently when it is installed, so as to avoid the deformation of the bumper.
