图片展示

混合料车辙试验机

混合料车辙试验机,沥青实验仪器

  • 型号: HYCZ-1

  • 产品参数
  • 型号: HYCZ-1

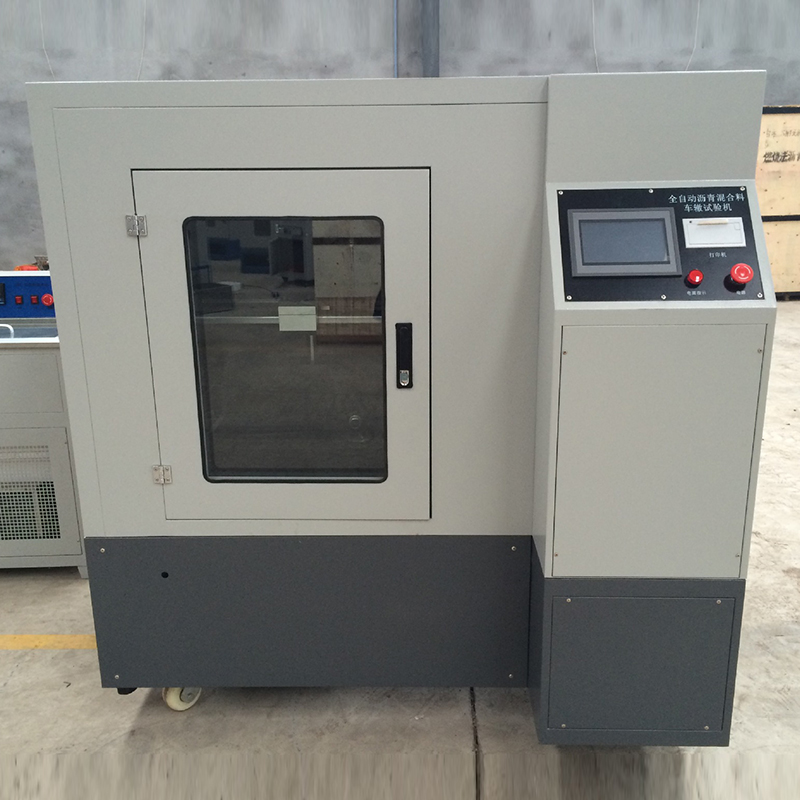

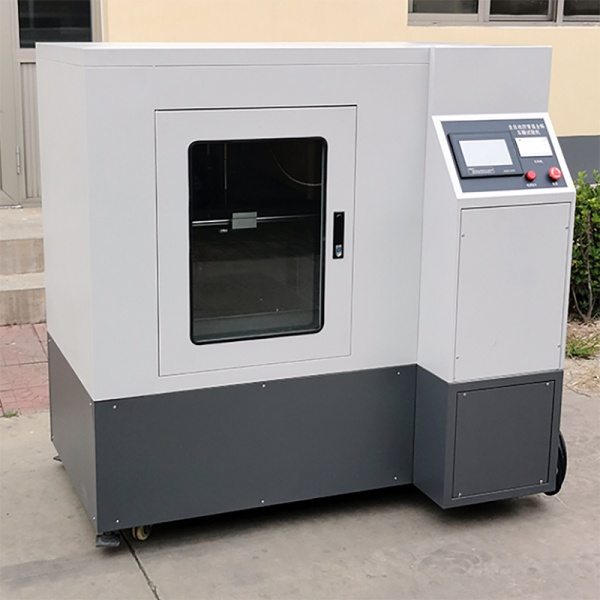

混合料车辙试验机是专业沥青检测仪器,适用于在试验室用轮碾法制作沥青混合料试件,该试件可供测定沥青混合料的高温抗车辙能力

The asphalt mixture rutting test machine is a professional asphalt testing instrument, which is suitable for making asphalt mixture test pieces by using the wheel rolling method in the laboratory. The test piece can be used for measuring the high temperature anti-rutting ability of the asphalt mixture.



混合料车辙试验机技术参数

试样尺寸:300X300X50(100)mm

试轮尺寸:¢200X50mm

试论压强:0.5±0.05Mpa-1.0±0.05Mpa可调

轮碾压速度:42±1次/分

加热功率:3KW

温度控制:60±0.5℃

位移测量范围:0-40mm±0.01mm

外形尺寸:1800×800×1500mm

环境温度:  ≤35℃

相对湿度:  ≤85%

整机功耗:4KW

仪器净重: 300kg

电源电压:380v

Asphalt mixture rutting test machine technical parameters:
■ Sample size: 300X300X50 (100) mm
■ Test wheel size: ¢ 200X50mm
■Test pressure: 0.5±0.05Mpa-1.0±0.05Mpa adjustable
■Rolling speed: 42±1 times/min
■ Heating power: 3KW
■ Temperature control: 60±0.5°C
■ Displacement measurement range: 0-40mm ± 0.01mm
■Dimensions: 1800 × 800 × 1500mm
■ Ambient temperature: ≤35°C
■Relative humidity: ≤85%
■Power consumption of the whole machine: 4KW
■Net weight of the instrument: 300kg
■Power supply voltage: 380v



混合料车辙试验机特点:

结构更加合理,客户使用更加方便。

在关键元器件的使用上,严格按照规范要求,同时高于规范要求,能够真实反应测量结果。

在温度控制上,采用高精度的PID控制技术,使箱内温度严格控制在60℃±0.5℃,完全满足实验要求。

采用高精度位移传感器,精度达到1‰,完全满足试验要求。

试验过程具有自动,手动控制功能,随时间调整小车的位置。

软件功能强大,成熟,界面友好,可对位移核定值修改,确保数据准确。

试验机与恒温箱一体化结构,恒温箱体内胆均采用不锈钢。

可利用恒温箱体进行试模养生。

可随时调整试验轮压强,A高可达1.0Mpa,满足不同试验要求

双操作模式,可以不用电脑而减小操作难度。

Asphalt mixture rutting test machine features:
■ The structure is more reasonable and the customer is more convenient to use.
■ In the use of key components, in strict accordance with the requirements of the specification, and at the same time higher than the requirements of the specification, can truly reflect the measurement results.
■In the temperature control, the high-precision PID control technology is adopted to make the temperature inside the box strictly controlled at 60 °C ± 0.5 °C, which fully meets the experimental requirements.
■Using high-precision displacement sensor with an accuracy of 1‰, it fully meets the test requirements.
■The test process has automatic and manual control functions to adjust the position of the car over time.
■ The software is powerful, mature, and user-friendly. It can modify the displacement verification value to ensure the data is accurate.
■ The integrated structure of the test machine and the incubator, the stainless steel inside the incubator is made of stainless steel.
■The mold can be used to maintain the mold.
■The pressure of the test wheel can be adjusted at any time, and the A height can reach 1.0Mpa, which meets different test requirements.
■ Dual operation mode, which can reduce the operation difficulty without using a computer.
