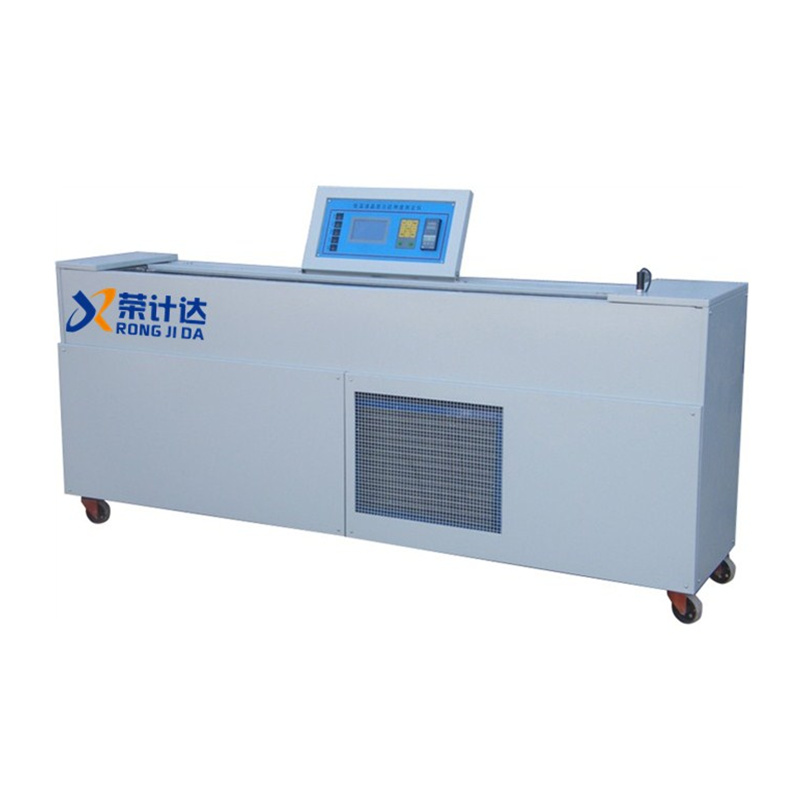

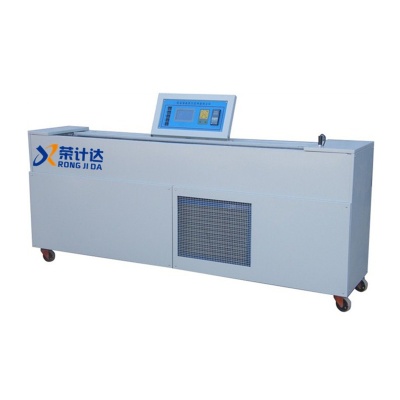

低温沥青延度仪

低温沥青延度仪,沥青实验仪器

  • 型号: LYY-7B

  • 产品参数
  • 型号: LYY-7B



低温沥青延度仪概述:

该仪器符合GB/T4508JTJ/T06060JTJ/T0662 ASTMD113标准,适用于测定沥青延度,也适用于测定改性沥青的弹性恢复试验。自动拉伸,自动回位,带手控开关,液晶显示,蒸发器制冷,温度精度0.5℃。延长有效长度1.42m。自动计算平均值。双速延伸。带有微型打印机,打印实验结果。挂模柱直径8mm用于测定沥青延度,也适用于测试改性沥青的弹性恢复试验。

Intelligent low temperature asphalt ductility meter overview:
The instrument complies with GB/T4508JTJ/T06060JTJ/T0662 ASTMD113 standard and is suitable for determining asphalt ductility. It is also suitable for determining the elastic recovery test of modified asphalt. Automatic stretching, automatic return, with manual switch, liquid crystal display, evaporator refrigeration, temperature accuracy 0.5 °C. Extend the effective length of 1.42m. The average is calculated automatically. Two speed extension. With a micro printer, print the experimental results. The hanging mold column has a diameter of 8 mm. It is used to determine the ductility of asphalt and is also suitable for testing the elastic recovery test of modified asphalt.



低温沥青延度仪工作原理:

采用了新的计算机技术,在技术参数和性能上较上一代产品具有质的飞跃。其制冷系统采用进口组件,设有循环系统并采用PID和模糊控制算法,温度稳定。浴槽设有隐藏式内部照明,不锈钢底板并配有透明槽盖。拉伸系统采用滚珠丝杠和直线导轨,拉伸平稳。拉伸速度由进口变频器无级调速,可以高速归位。控制系统采用了双CPU设计,人机界面采用了中文液晶屏,轻触式按键操作,界面简单友好,操作简便。

Intelligent low temperature asphalt ductility meter works:
Adopting new computer technology, it has a qualitative leap in technical parameters and performance compared to the previous generation. Its refrigeration system uses imported components, has a circulation system and uses PID and fuzzy control algorithms to stabilize the temperature. The bath features recessed interior lighting, a stainless steel base and a transparent slot cover. The stretching system uses a ball screw and a linear guide for smooth stretching. The drawing speed is steplessly regulated by the imported inverter and can be homing at high speed. The control system adopts dual CPU design, the human-machine interface adopts Chinese LCD screen, and the touch-button operation is simple and friendly, and the operation is simple.



低温沥青延度仪技术参数:

拉伸长度:1.5m      精度:1mm

控温范围:-5~80℃    精度:±0.1℃

拉伸速度:10mm/Min   50mm/Min 也可以通过键盘任意设定

制冷功率:1.2KW       加热功率:2KW

外形尺寸:2300x800x1100mm

重量:300KG

电源电压:220V

功率:3KW

环境温度:5~40℃

环境湿度:≦85﹪

Intelligent low temperature asphalt ductility meter technical parameters:
★ Stretching length: 1.5m Accuracy: 1mm
★ Temperature control range: -5~80°C Accuracy: ±0.1°C
★ Stretching speed: 10mm/Min 50mm/Min can also be set arbitrarily through the keyboard
★ Refrigeration power: 1.2KW Heating power: 2KW
★Dimensions: 2300x800x1100mm
★ Weight: 300KG
★Power supply voltage: 220V
★ Power: 3KW
★ Ambient temperature: 5 ~ 40 ° C
★Environmental humidity: ≦85%



低温沥青延度仪特点:

制冷系统采用进口组件,设有循环系统,温度稳定。浴槽设有内部照明,配有透明槽盖。不锈钢底板永不生锈。

拉伸系统采用滚珠轴承和直线导轨系统,拉伸平稳。拉伸速度由进口变频器分级调速,自动高速归位,带有刹车系统。

5.7寸超大液晶显示模组,键盘输入,遥控输入,多种输入方式实现人机对话。双核设计,使控制更精准。

屏上自动显示伸长量,无线遥控锁定,自动计算平均值,自动记录试验起始时间,试验结束时间。可以存储30组试件。

Intelligent low temperature asphalt ductility meter features:
★The refrigeration system adopts imported components and has a circulation system with stable temperature. The bath is internally illuminated and features a transparent slot cover. The stainless steel base plate never rusts.
★The stretching system adopts ball bearing and linear guide system for stable stretching. The stretching speed is graded and regulated by the imported frequency converter, and the automatic high speed homing has a braking system.
★ 5.7-inch large LCD module, keyboard input, remote input, a variety of input methods to achieve man-machine dialogue. Dual-core design for more precise control.
★ The display automatically displays the amount of elongation, wireless remote control lock, automatically calculates the average value, automatically records the test start time, and the test end time. It can store 30 sets of test pieces.
