HQP-150混凝土芯样切割机 混凝土芯样切片机

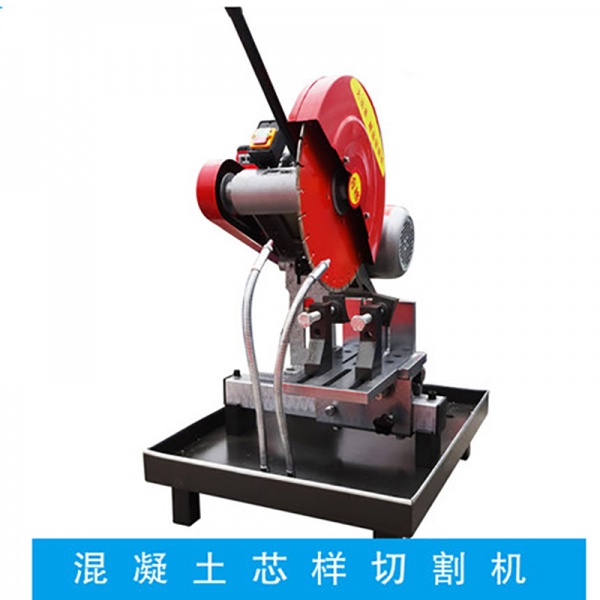

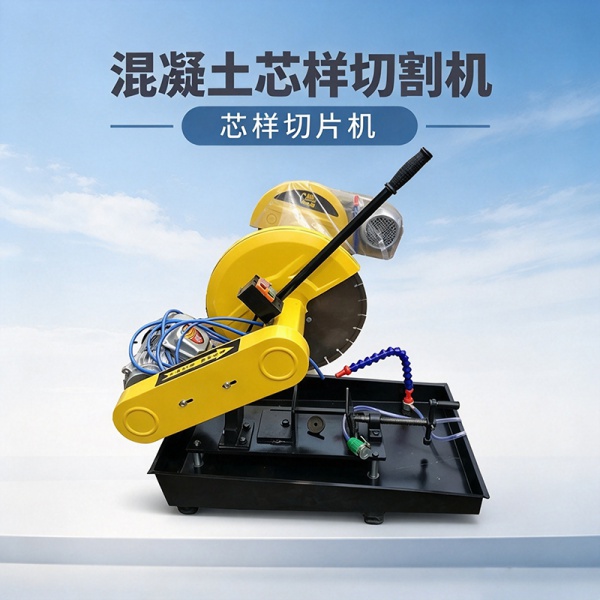

HQP-150混凝土芯样切割机该机广泛用于建筑工程质量检验,公路工程质量检测取芯法取出芯样的锯切工作,也可用于建筑施工中异型砖的锯切工作。

  • 型号: HQP-150

  • 产品参数
  • 型号: HQP-150

一、混凝土芯样切割机产品简介:

HQP-150混凝土芯样切割机该机广泛用于建筑工程质量检验,公路工程质量检测取芯法取出芯样的锯切工作,也可用于建筑施工中异型砖的锯切工作。

Product introduction of concrete core sample cutting machine:

HQP-150 Concrete Core Sample Cutting Machine This machine is widely used in the quality inspection of construction engineering, the quality inspection of highway engineering and the core removal method to remove the core sample, and it can also be used for the sawing of special-shaped bricks in construction.


二、混凝土芯样切割机主要技术参数:

★锯切试件直径:50、75、100mm

★锯切试件长度:47.5-205mm

★主轴转速:2300r/min

★电机额定功率:2.2kw

★锯片直径:400mm

Second, the main technical parameters of concrete core cutting machine:

★ Sawing test piece diameter: 50, 75, 100mm

★ Sawing test piece length: 47.5-205mm

★ Spindle speed: 2300r / min

★ Motor rated power: 2.2kw

★ Saw blade diameter: 400mm


三、混凝土芯样切割机主要特点:

★设计紧凑的独立控制面板有效控制所有重要的操作。

★机身内置的控制面板和独立的控制面板完全同步,液晶显示屏上可提示切片厚度总计和切片总计,修块厚度,切片厚度,并提示重要操作状态。

★两个样本垂直停止位(上、下)

★五种切片模式:单一、连续、步进、半刀、编程

★切片速度根据切片厚度自动调节。

★修块功能可关闭。在自动状态下,修块的参数自动调节,手动状态下,修块的参数可以编程决定。

Third, the main characteristics of concrete core cutting machine:

★ Compact and independent control panel effectively controls all important operations.

★ The built-in control panel and the independent control panel are fully synchronized. The LCD display can prompt the total slice thickness and total slice thickness, trimming thickness, slice thickness, and prompt important operating status.

★ Two sample vertical stop positions (up, down)

★ Five slice modes: single, continuous, step, half knife, programming

★ Slicing speed is automatically adjusted according to slice thickness.

★ The trimming function can be turned off. In the automatic state, the parameters of the trimming block are automatically adjusted. In the manual state, the parameters of the trimming block can be determined by programming.


四、混凝土芯样切割机构造及原理:

★切片机的构造:主要由回弹单相串机电动、减速箱、磨头主体、立柱、丝杠、升降手柄及度盘以及底盘,夹具,地脚螺钉等三大部分组成,该机混凝土芯样装夹方便,精度高,磨削质量好,操作简单,安全可靠。

★工作原理:本机是依靠装有金刚石刃具的平面磨头,在告诉转速的情况下实现混凝土芯样的端面磨削目的,该机采用圆立柱导轨和丝杠升降手动给进方式,保证了磨头工作平稳,可靠。

Fourth, the structure and principle of concrete core cutting machine

★ Slicing machine structure: It is mainly composed of three parts: rebounding single-phase series motor, gearbox, grinding head body, column, lead screw, lifting handle and dial, chassis, fixture, anchor screw, etc. The machine is concrete The core sample is convenient for clamping, high precision, good grinding quality, simple operation, safe and reliable.

★ Working principle: This machine relies on a flat grinding head equipped with diamond cutting tools to achieve the grinding of the end face of the concrete core under the condition of the speed. The machine uses a circular column guide and a screw lift manual feed method to ensure that The grinding head works smoothly and reliably.


五、混凝土芯样切割机使用方法:

★接通电源及水源。

★根据芯样直径选择相应的夹具,牢固地卡在小圆立柱上。

★松开主体禁固螺栓,转动丝杠升降手柄,选择要求的尺寸,锁紧度盘。

★开启进水咀阀门通水,放好防溅水罩并闭合电源开关,使磨头旋转。

★手扶主体慢慢接近芯样,开始削磨,往复数次。

★松开小圆立柱,夹具的元宝螺钉,反向安装片牢,重复2、3、4步骤,直至芯样端面符合要求为止。

★切片机用后关闭电源,擦试干净机器。

Five, the use of concrete core sample cutting machine

★ Turn on the power and water.

★ Choose the corresponding fixture according to the core sample diameter, and clamp it firmly on the small round column.

★ Loosen the main body fixing bolt, turn the screw lifting handle, select the required size, and lock the dial.

★ Open the water nozzle valve to allow water, put the splash-proof cover and close the power switch to make the grinding head rotate.

★ The main body of the hand slowly approaches the core and starts to grind, reciprocating several times.

★ Loosen the small round column, the ingot screw of the fixture, and install the piece firmly in the opposite direction. Repeat steps 2, 3 and 4 until the end face of the core sample meets the requirements.

★ After using the slicer, turn off the power and wipe the machine clean.


六、混凝土芯样切割机操作规程:

★接通电源及水源。

★根据芯样直径选择相应的夹具,将芯样夹紧并转到底盘中位置后将夹具索紧。

★松开上、下索紧手轮,转动升降手轮,当磨轮端面距芯样端面1mm时停止。然后索紧上索紧手柄,开启进水嘴阀门通水,并闭合电源开关,使磨轮转动,然后逆时针转动手轮,并同时顺时针转动微动手轮使磨头下降。当磨轮端面接触试样端面时摆动磨头进行磨削,直至磨平试样端面。

★磨削完毕,关闭电源及水嘴阀并逆时针转动微动手轮,使其处于上**限位置。

★松开夹具索紧手柄,将夹具同试样一同取下并反向安装,重复2、3、4步动作磨削另一端面。直至芯样端面符合要求为止。

★切片机用后关闭电源,擦试干净机器。

Six, concrete core cutting machine operating procedures:

★ Turn on the power and water.

★ Select the corresponding clamp according to the core sample diameter, clamp the core sample and turn it to the center of the chassis, and then tighten the clamp.

★ Release the upper and lower ropes to tighten the handwheel, turn the lifting handwheel, and stop when the end surface of the grinding wheel is 1mm from the end surface of the core. Then fasten the tight handle, open the water inlet valve to allow water, and close the power switch to rotate the grinding wheel, then turn the hand wheel counterclockwise, and at the same time turn the micro-movement hand wheel clockwise to lower the grinding head. When the end surface of the grinding wheel contacts the end surface of the sample, the grinding head is swung to perform grinding until the end surface of the sample is flattened.

★ After grinding, turn off the power and the water nozzle valve and turn the micro-motion handwheel counterclockwise to make it in the upper limit position.

★ Release the clamp and tighten the handle, remove the clamp together with the sample and install it in the opposite direction. Repeat the steps 2, 3 and 4 to grind the other end surface. Until the core sample end meets the requirements.

★ After using the slicer, turn off the power and wipe the machine clean.
