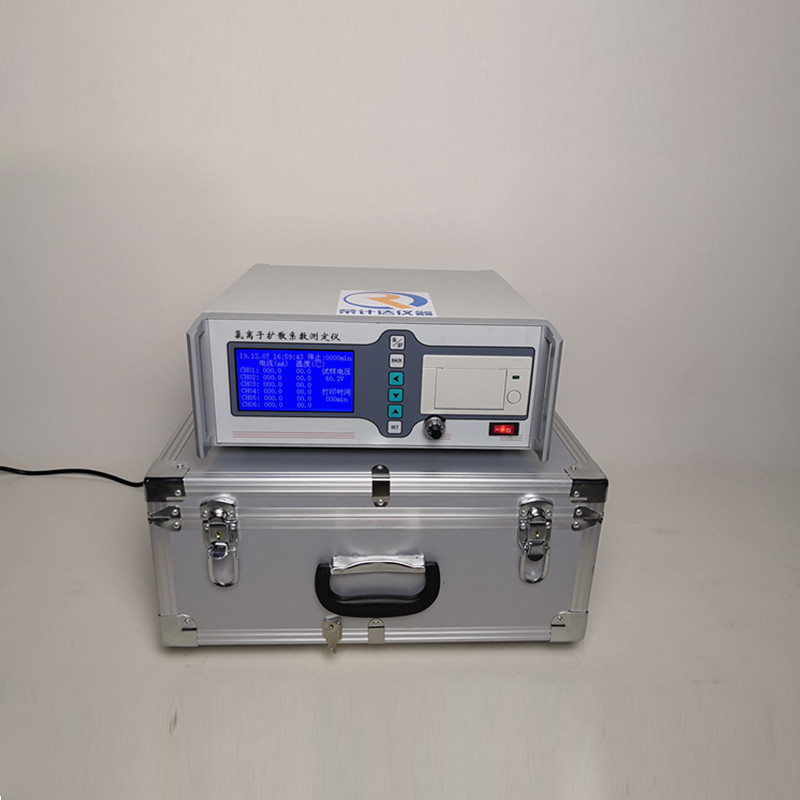

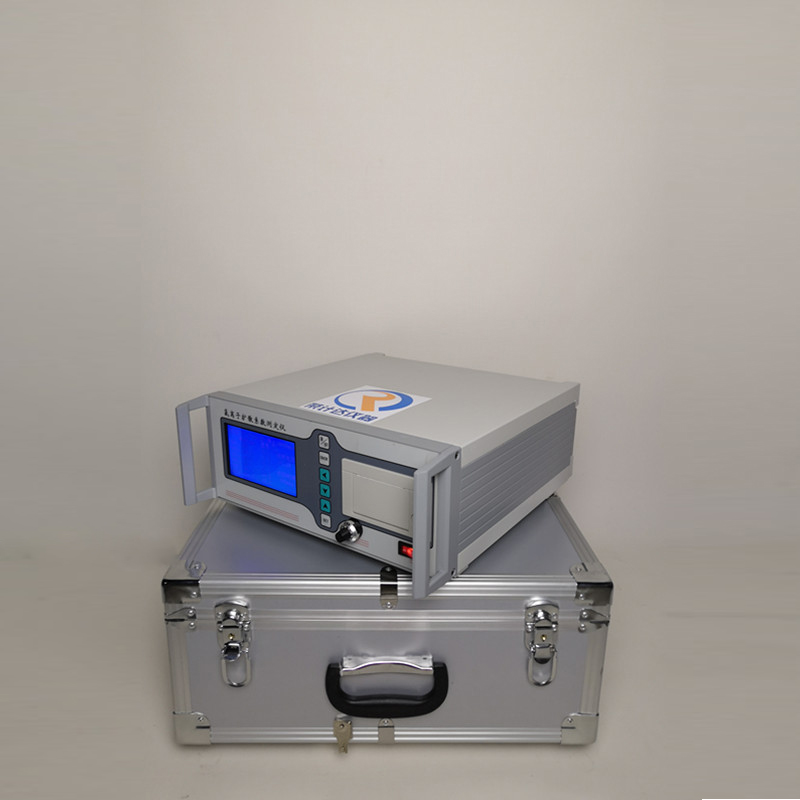

RCM混凝土氯离子扩散系数测定仪

混凝土氯离子扩散系数测定仪采用**的人工智能模糊化控制,所有内容均以中文提示菜单方式。并可应用数字键选择相应的通道,对各通道进行独立的操作及设置,采用进口传感器,数据更加稳定准确、使用寿命长。

  • 型号: RCM

  • 产品参数
  • 型号: RCM

混凝土氯离子扩散系数测定仪采用人工智能模糊化控制,所有内容均以中文提示菜单方式。并可应用数字键选择相应的通道,对各通道进行独立的操作及设置,采用进口传感器,数据更加稳定准确、使用寿命长。

The concrete chloride ion diffusion coefficient tester adopts the artificial intelligence fuzzy control, and all the contents are displayed in Chinese in the menu mode. And can use the number keys to select the corresponding channel, independent operation and setting of each channel, the use of imported sensors, data is more stable and accurate, long service life.


混凝土氯离子扩散系数测定仪参数:

★测试通道:6通道、9通道、 12通道、16通道可选

★供电电源:220V

★输出电压范围:直流0~60V(各通道自动按标准调整,无需人工干预)

★电压精度:±0.1V

★电流测试范围:0~500mA

★电流精度:±0.1mA

★温度测试范围:-55~125℃

★温度测试精度:±0.5℃

★运行时间精度:<1min

★空载与满载电压变化:±0.1V

Concrete chloride ion diffusion coefficient tester parameters

★ Test channel: 6 channels, 9 channels, 12 channels, 16 channels are optional

★ Power supply: 220V

★ Output voltage range: DC 0 ~ 60V (each channel is automatically adjusted according to the standard without manual intervention)

★ Voltage accuracy: ± 0.1V

★ Current test range: 0 ~ 500mA

★ Current accuracy: ± 0.1mA

★ Temperature test range: -55 ~ 125 ℃

★ Temperature test accuracy: ± 0.5 ℃

★ Running time accuracy: <1min

★ No-load and full-load voltage change: ± 0.1V


混凝土氯离子扩散系数测定仪通过电迁移法(NTBuild492)来测定混凝土氯离子的扩散系数.该设备参照A新国标《普通混凝土长期性和耐久性标准试验方法标准》GB/T50082-2009,《公路工程混凝土结构防腐蚀技术规范》JTG/T B07-1-2006方法。

The concrete chloride ion diffusion coefficient tester measures the chloride ion diffusion coefficient of concrete by electromigration method (NTBuild492). The device refers to the new national standard A, "Standard Test Method Standard for Long-term Durability and Durability of Ordinary Concrete" GB / T50082-2009, "Highway Technical Code for Anticorrosion of Engineering Concrete Structures "JTG / T B07-1-2006 method.

混凝土氯离子扩散系数测定仪执行标准:

北欧NT BUILD 492(Chloride Migration Coefficient from Non – Steady - State Migration Experiments)

**标准《普通混凝土长期性能和耐久性能试验方法》(GB/T50082-2009)

EU – Project CHLORTEST G6RD – CT – 2002 – 00855推荐标准

CEN TC 51(CEN TC 104)/WG12/TG5推荐标准

中国土木工程学会《混凝土结构耐久性设计与施工指南》(CCES-01--2004)

《公路工程混凝土结构防腐蚀技术规范》 JTG/T B07-01-2006

《杭州湾跨海大桥专用施工技术规范》、《青岛海湾大桥专用施工技术规范》推荐标准

《混凝土氯离子扩散系数测定仪》(JG/T262-2009)

《水工混凝土试验规程》SL352-2006

Concrete chloride ion diffusion coefficient tester implementation standards:

Nordic NT BUILD 492 (Chloride Migration Coefficient from Non – Steady-State Migration Experiments)

** Standard "Test method for long-term performance and durability of ordinary concrete" (GB / T50082-2009)

EU-Project CHLORTEST G6RD-CT-2002-00855

CEN TC 51 (CEN TC 104) / WG12 / TG5 Recommended Standards

Guide for Durability Design and Construction of Concrete Structures by the Chinese Society of Civil Engineering (CCES-01--2004)

"Technical Specification for Anticorrosion of Concrete Structures for Highway Engineering" JTG / T B07-01-2006

Recommended Standards for "Special Construction Technical Specifications for Hangzhou Bay Bridge" and "Special Construction Technical Specifications for Qingdao Bay Bridge"

`` Concrete chloride ion diffusion coefficient tester '' (JG / T262-2009)

《Hydraulic Concrete Test Regulations》 SL352-2006


混凝土氯离子扩散系数测定仪特点:

人性化的操作界面设计,所有内容均以中文提示菜单方式,并可应用数字键选择相应的通道,对各通道进行独立的操作及设置,单独控制或分组运行和控制,单通道A大电流可达到0.8A,比国标高出1倍,各通道满载运行时A大的电流也可达到0.7A,并且电压精度可控制在±0.1V,同时设备具有过载及短路保护,过载值默认为350MA,用户可通过软件修改此值。当某一通道存在过载或短路时,系统立即自动关闭需要保护的通道,30秒后系统将自动再次尝试开启,如过载或短路消失将恢复正常运行,否则立即保护并将在30秒后再次尝试恢复,如连续6次尝试恢复失败系统将正式关闭该通道,其它通道均不会受影响。我们的保护方式**不会烧毁任何元器件,当重新开始新试验时所保护的通道继续正常运行。

电流精度为:0.1mA。同时设备具有液晶屏显示,全中文操作菜单及提示,试验中各通道参数值设置及查看均可通过数字键直接切换。用户也可通过桌面软件实行所有的功能操作及实时数据查看。设备运行时所保存的数据将在软件运行时后台自动导入计算机,并自动分组存储在数据库内,无需人工干预,下一版本中我们将提供数据一键备份及导出功能,及曲线生成,报表生成工具。

Characteristics of concrete chloride ion diffusion coefficient tester

Humanized operation interface design, all contents are in Chinese prompt menu mode, and the corresponding channels can be selected using numeric keys, each channel can be independently operated and set, individually controlled or grouped and controlled, single channel A high current can be It reaches 0.8A, which is 1 times higher than the national standard. When each channel is running at full load, the large A current can also reach 0.7A, and the voltage accuracy can be controlled at ± 0.1V. At the same time, the device has overload and short-circuit protection. The default overload value is 350MA. The user can modify this value through software. When a channel is overloaded or short-circuited, the system will automatically close the channel to be protected immediately. After 30 seconds, the system will automatically try to turn on again. If the overload or short-circuit disappears, normal operation will be resumed. Otherwise, the protection will be tried again after 30 seconds. Recovery. If the system fails to restore for 6 consecutive attempts, the channel will be officially closed, and other channels will not be affected. Our protection method ** will not burn any components. When the new test is restarted, the protected channel will continue to operate normally.

The current accuracy is: 0.1mA. At the same time, the device has LCD screen display, full Chinese operation menu and prompts, and the parameter value setting and viewing of each channel during the test can be directly switched through the number keys. Users can also perform all functional operations and real-time data viewing through desktop software. The data saved when the device is running will be automatically imported into the computer in the background when the software is running, and will be automatically grouped and stored in the database without manual intervention. In the next version, we will provide one-click data backup and export functions, as well as curve generation and report generation. tool.


RCM混凝土氯离子扩散系数测定仪
混凝土氯离子扩散系数测定仪采用**的人工智能模糊化控制,所有内容均以中文提示菜单方式。并可应用数字键选择相应的通道,对各通道进行独立的操作及设置,采用进口传感器,数据更加稳定准确、使用寿命长。
